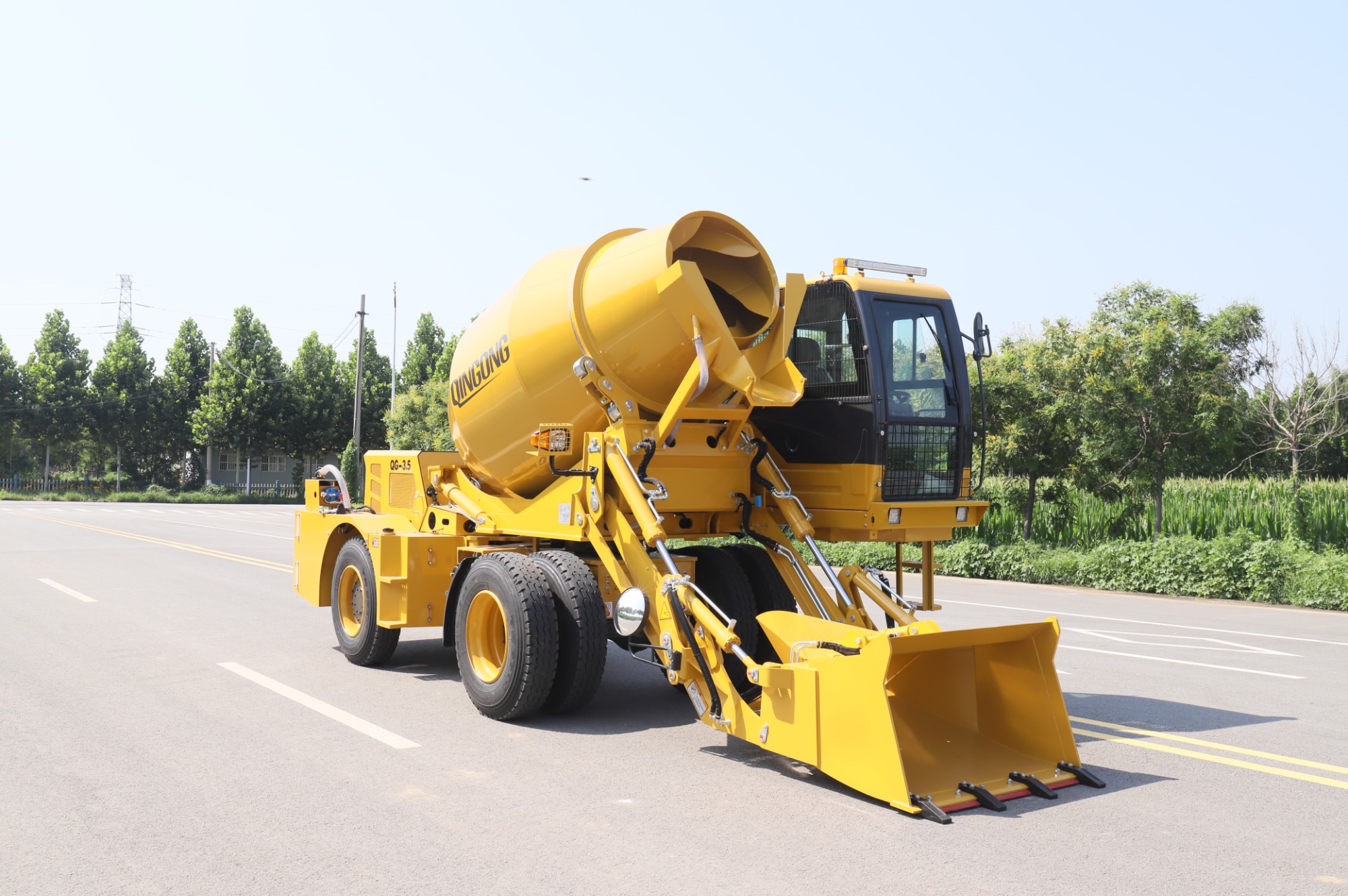

| Name | Qingong QG-3.5 Self loading mixer |
|
Output per lot |
3.5m3 |
|
Drum rotation |
Discharge Port Height 1.75 M, tank horizontal rotation 270 tank can be raised and lowered |
|
Capacity |
Up to 5 batches per hour, 17.5 cubic hours |
| Engine |
Yuchai 4105 supercharged , diesel, water- cooled, 4 cylinders, 2400 RPM, rated power 85KW |
|
Bucket
|
0.6 cubic, hydraulic gate |
|
Fuel tank / Water tank |
The tank has a capacity of 800 litres ，130 litres diesel tank, 130 litres hydraulic tank |
|
Weight |
8100kg |
|
Length, width, height / wheelbase / Wheelbase |
7100mm * 2750mm * 3300mm * 2900mm * 2150mm |
|
Tire
|
16/70 -20 single row tyres |
| Option | Cummins Engine |
