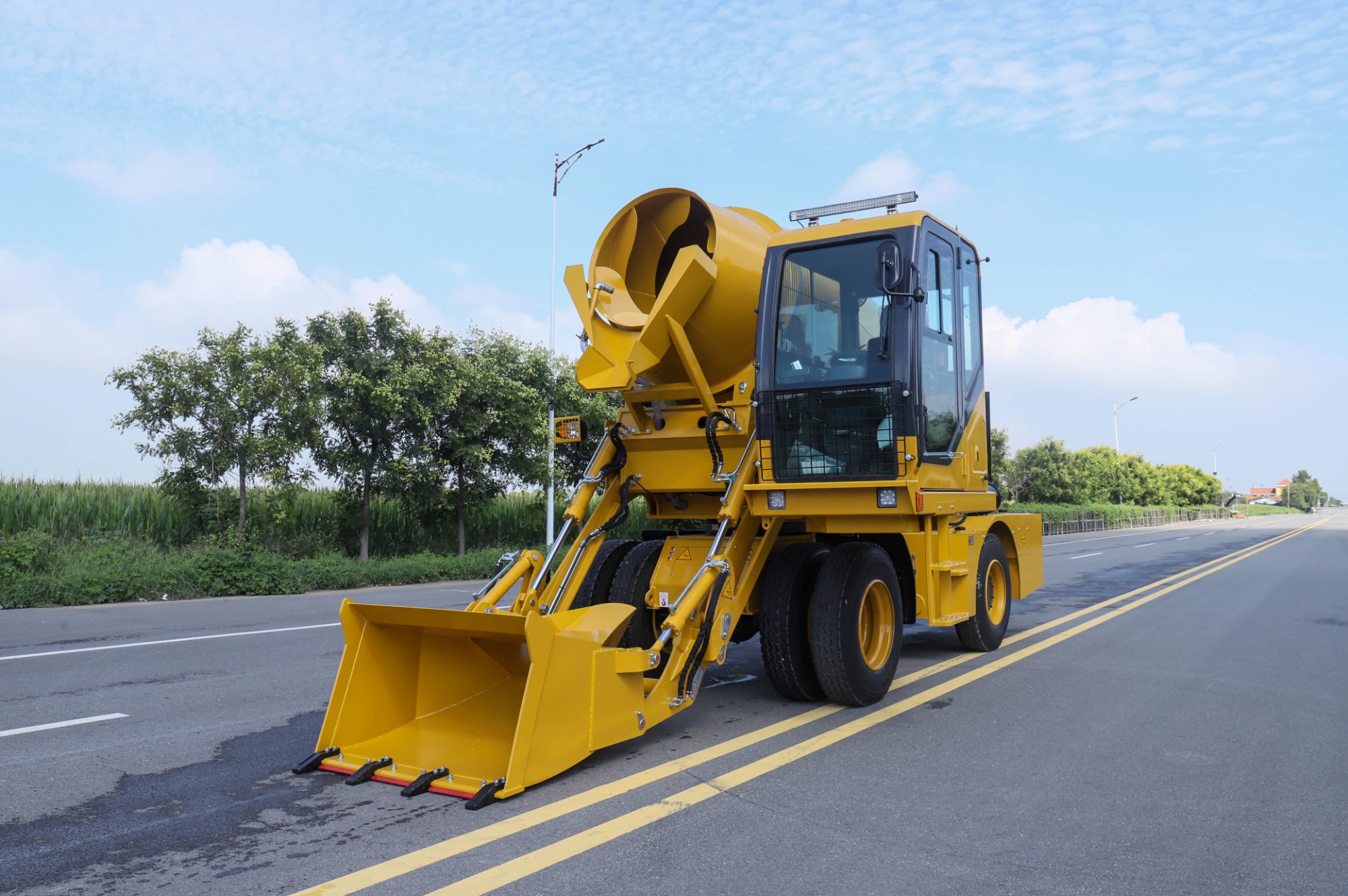

| Name | Qingong QG-4.0 Self loading mixer |
|
Output per lot |
4.0m3 |
|
Drum rotation |
Discharge Port Height 2 M, tank horizontal rotation 270 tank can be raised and lowered |
|
Capacity |
Up to 5 batches per hour, 20cubic per hour |
| Engine |
Yuchai 4108 supercharged , diesel, water- cooled, 4 cylinders, 2600 RPM, rated power 91KW |
|
Bucket
|
0.6 cubic, hydraulic gate |
|
Fuel tank / Water tank |
1 * 1000 litres water tank, 135 litres diesel fuel tank, 135 litres hydraulic fuel tank |
|
Weight |
9100kg |
|
Length, width, height / wheelbase / Wheelbase |
7600mm * 2950mm * 3400mm * 3000mm * 2200mm |
|
Tire
|
12R-22.5 steel wire high pressure vacuum tire |
| Option | Cummins Engine |
