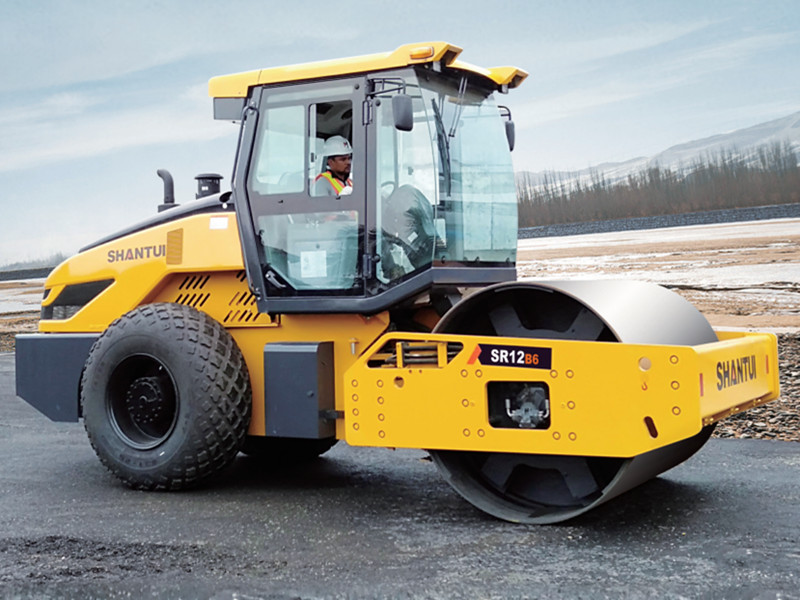

| Name | SHANTUI 12T SINGLE DRUM COMPACTOR SR12-B6 |
| Operating weight(kg) | 11500 |
| Engine power(kW/rpm) |
97.5/2200 |
| Front and rear load distribution(mm) | 7000/5300 |
|
Vibration frequency low/high(Hz)
|
30/36 |
| Minimum turning radius(mm) | 6400 |
| Excitation force(kN) | 290/200 |
| Amplitude(mm) | 2.0/1.0 |
|
Gradeability
|
0.45 |
| Speed(km/h) | 0-5.5，0-10 |
| Emissions (Indicated as per international standards) | Eu stageⅡ |
