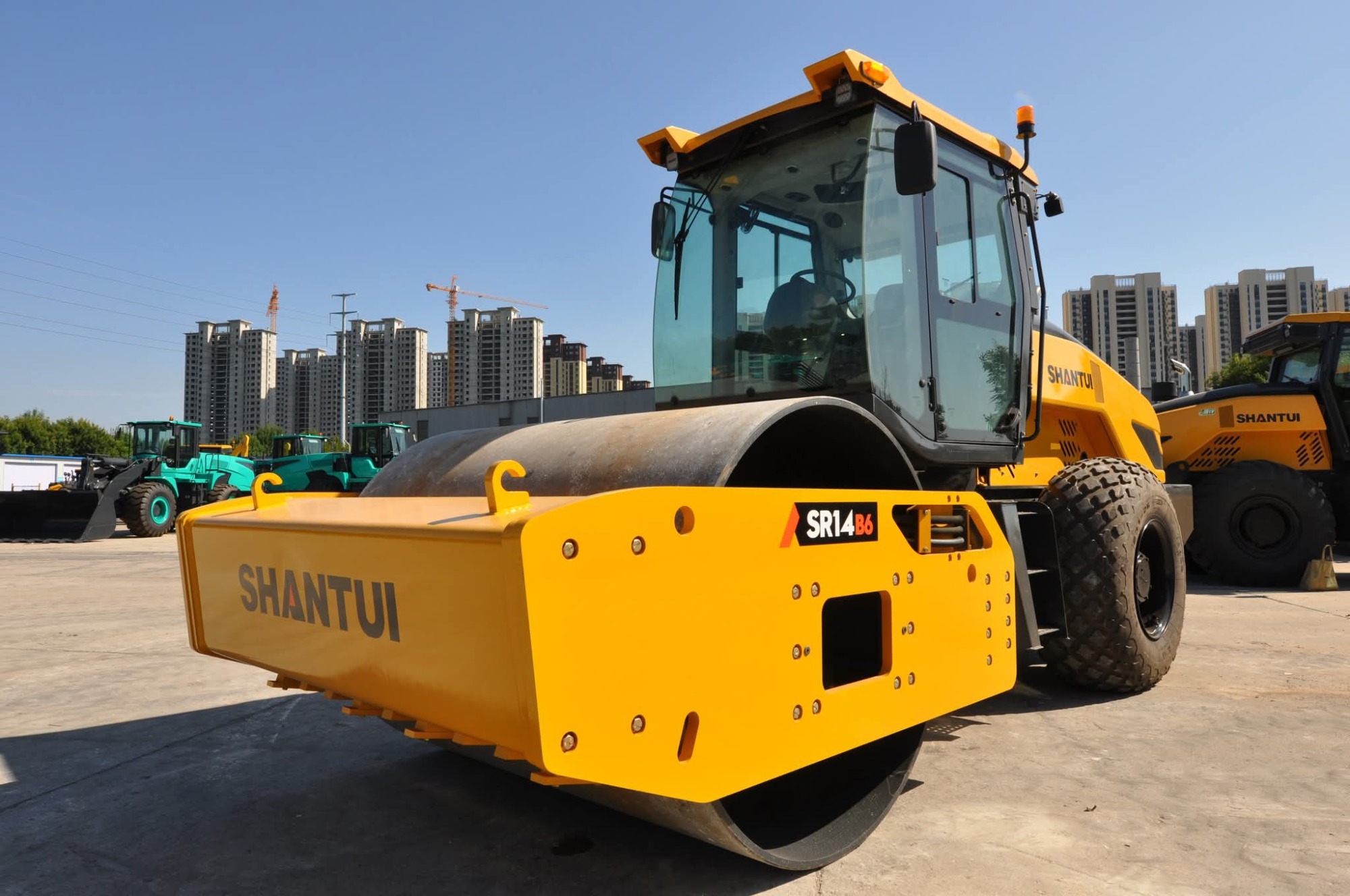

| Name | SHANTUI 14T SINGLE DRUM COMPACTOR SR14-B6 |
| Operating weight(kg) | 14000 |
| Engine power(kW/rpm) |
129/2200 |
| Front and rear load distribution(mm) | 8400/5600 |
|
Vibration frequency low/high(Hz)
|
30/36 |
| Minimum turning radius(mm) | 7260 |
| Excitation force(kN) | 310/200 |
| Amplitude(mm) | 2.0/1.0 |
|
Gradeability
|
0.45 |
| Speed(km/h) | 0-5.5，0-9.5 |
| Emissions (Indicated as per international standards) | Eu stageⅡ |
