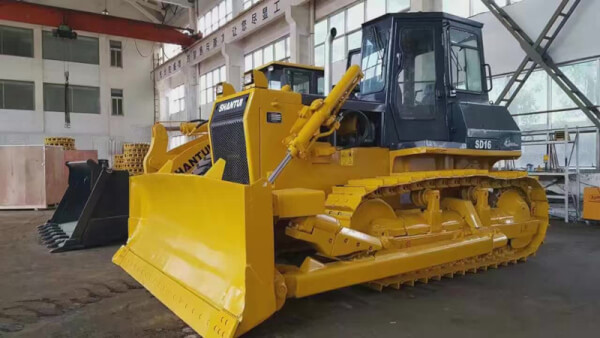

| Name | SHANTUI Bulldozer SD16 |
| Operating weight | 16.4Ton |
| Engine model | WEICHAI WD10G178E25 |
| Net power/rated speed | 131/1850kW/rpm |
|
Track center distance(mm)
|
1880 |
| Track shoe width(mm) | 510/560/610 |
| Ground contact length(mm) | 2430 |
| Fuel tank capacity(L) | 315 |
|
Blade type
|
Straight tilting/U-shaped Blade |
| Blade capacity(m³) | 3.2/4.8 |
| Emissions (Indicated as per international standards) | Eu stageⅡ |
